[edit] Definition

LCD.DLL is a DLL to communicate with the LCD Screen of the Logitech G15 keyboard. When Logitech makes other devices with LCD screens, this DLL will support them too.

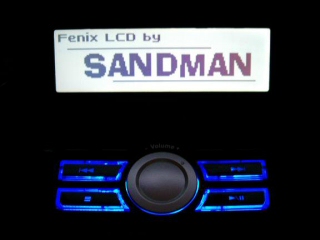

LCD.DLL example

[edit] Features

• Control of what is being shown on the LCD screen.
• Read the state of the soft buttons on the LCD screen.

[edit] How to use

To be able to use it, you must include the LCD.DLL functionality:

include "LCD.fh";

First you initialize LCD.DLL:

LCD_Init("Fenix LCD");

Then open a connection an LCD screen device:

LCD_Open(0);

Now you can update the LCD screen and read the state of the buttons:

LCD_SetBitmap(0,LCD_PRIORITY_NORMAL,map_buffer(file,graph));
// Make sure (file,graph) is 160x43x8

[edit] Future

Depends on what Logitech will do.

[edit] Download

Here's the complete package containing a simple testprogram with commented source, the DLL, the sourcecode and full documentation:

• LCD.DLL v1.11 for Fenix 0.83b
• LCD.DLL v1.11 for Fenix 0.84a
• LCD.DLL v1.11 for Fenix 0.92a (also 0.93 and before 0.92a)
• LCD Pong

[edit] Documentation

• LCD.DLL functions
• LCD.DLL globals
• LCD.DLL defines
• LCD.DLL errorcodes
• LCD.DLL changelog

[edit] Links

• An old topic on Booleansoup
